Product Details:
|
| Product Name: | Zoomlin Concrete Pump Truck | Dimension(L*W*H):: | 11990*2490*3900 Mm |
|---|---|---|---|
| Weight: | 32450 Kg | Maximum Horizontal Distance: | 45.8m |
| Feature: | High Operating Efficiency | Keyword: | 39m -80m Truck-mounted Pump Truck |
| Core Components:: | Pressure Vessel, Motor, Bearing, Gear, Pump, Gearbox | ||
| Highlight: | Second Hand 4 Axle Truck,4 Axle Truck 49X-6RZ,truck concrete pump 49X-6RZ |
||

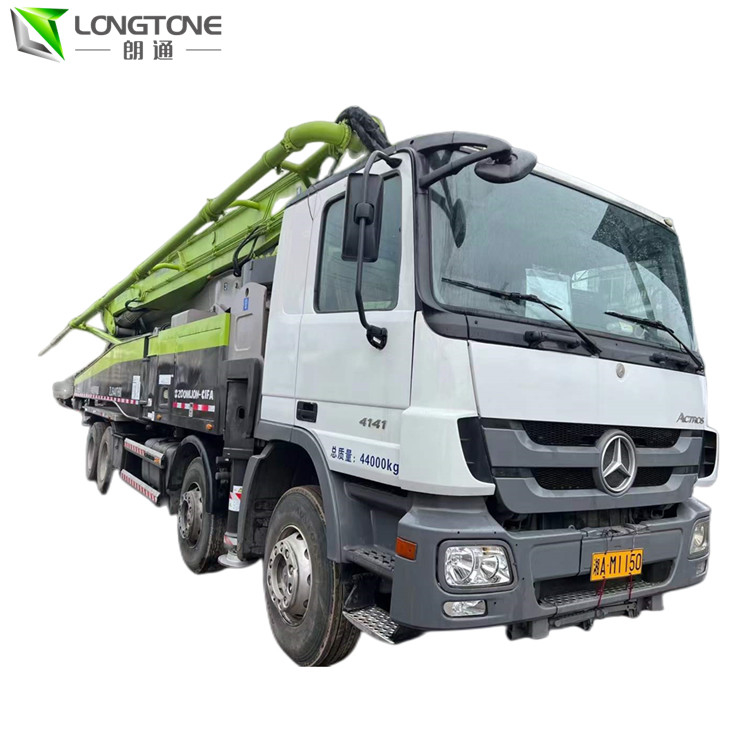

Second Hand Zoomlion 49m Concrete Pump On A 4-Axle Truck 49X-6RZ
| Distribution valve | S-valve | |
| Max. Concrete Output | m3/h | 170/120 |
| Max. Concrete Pressure | MPa | 8.3/12 |
| Delivery Cylinder | mm | 260 |
| Stroke Length | mm | 2100 |
| Strokes | 1/min | 25/18.5 |
| Hopper Capacity | L | 600 |
| Filling height | mm | 1540 |
| Hydraulic System | Open | |
| Hydraulic oil cooling | Double fans | |
| High/Low Press. Switch | Automatic | |
| Lubrication on pump | Automatic | |
| Lubrication on hopper | Automatic | |
| GPS Data Manage | Optional | |
| Boom Control Valve | Proportional | |
| Number of Arms | 6 | |
| Folding System | RZ | |
| Max. Reach Vertical | m | 49 |
| Max. Reach Horizontal | m | 45 |
| Max. Reach Depth | m | 34.1 |
| Min. Unfolding Height | m | 9.5 |
