Product Details:
|
| Application Machines: | Concrete Pumps And Shotcrete Pumps Of Putzmeister/Schwing/Sani/Zoomlion/Cifa/Sermac/Kyokuto/Kcp/Junjin/IHI/Mitsubishi/Niigata | Chrome Thickness: | 0.20-0.30mm As Request |
|---|---|---|---|
| Pumping Lifetime: | 80,000-100,000 Cbm(1 Year Guarantee) | Hardness: | HV820-900 After Tempered |
| Keywords: | Delivery PIPE Concrete Pump | Surface Treatment: | Painting To Prevent Rusted |
| High Light: | Schwing Concrete Pump Pipes,Hardened Concrete Pump Pipes,0.20 Thickness Concrete Pipe |
||

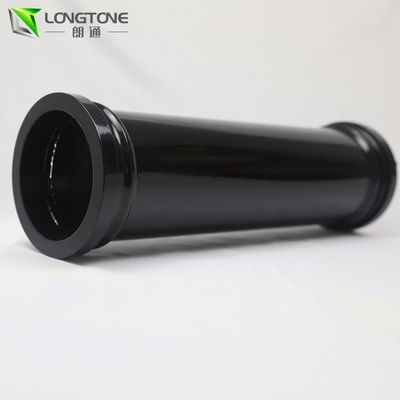

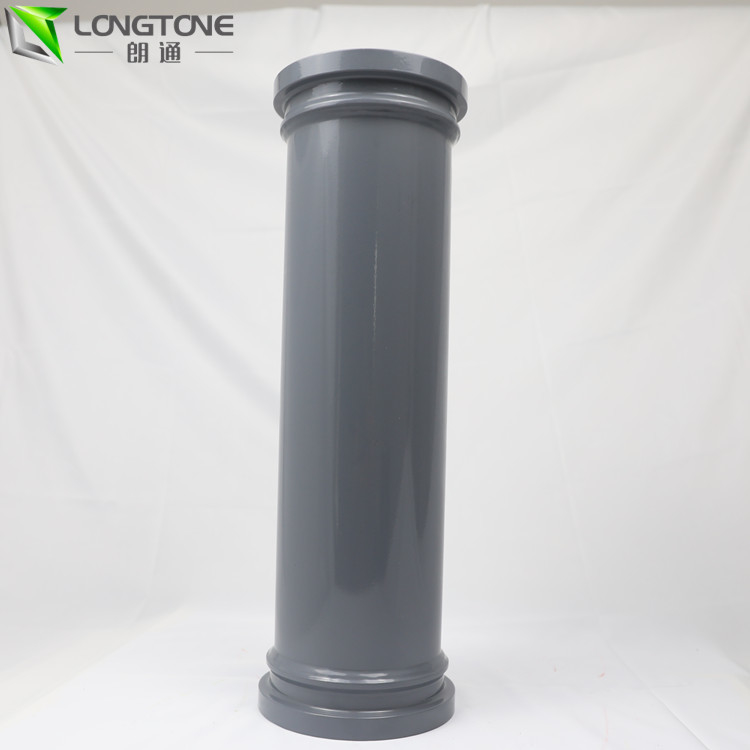

Schwing Dn125 Single Wall Hardened Pipe High Quality Seamless Concrete Pump Straight Pipe
Product details
| Name | Specification model |
| Ground pump straight pipe | DN125*4.5-6.0mm |
| Ground pump straight pipe | DN150*5.0-6.0mm |
| Mortar pump tube | DN50*3.0-3.5mm |
| Mortar pump tube | DN60*3.0-3.5mm |
| Mortar pump tube | DN65*3.0-3.5mm |
| Mortar pump tube | DN76*3.0-3.5mm |
| Mortar pump tube | DN80*3.0-3.5mm |
Concrete pump pipe specifications
1. Material: Q235, 20#, 16Mn, ST52, 45Mn2, 37Mn5, 50Mn2, W12-5, W12-8, GX350.
2. Sizes: DN60-DN180 (mm unit)
3. Length: 1m, 2m, 3m, 6m or according to clients' requirements.
4. Packing: With waterproof plastic film and ends
5. Surface Treatment: Powder painted and baked
6. Features of LONGTONE Concrete pump delivery pipe: long life time, high wear-resistance, shortest delivery time with pretty price.
