Product Details:
|
| Material: | 65Mn | Color: | Red Green White Black |
|---|---|---|---|
| Hardness: | 64 | Thickness: | 3.2+2.3 |
| High Light: | 133X5.5X3000 concrete pipe elbow,Double Layer concrete pipe elbow,Stable Double Layer Pipe Elbow |
||

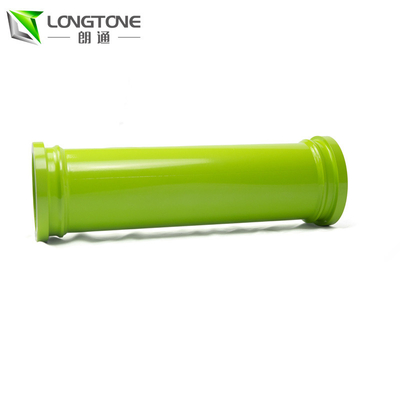

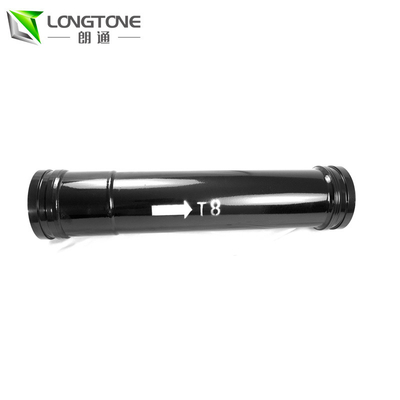

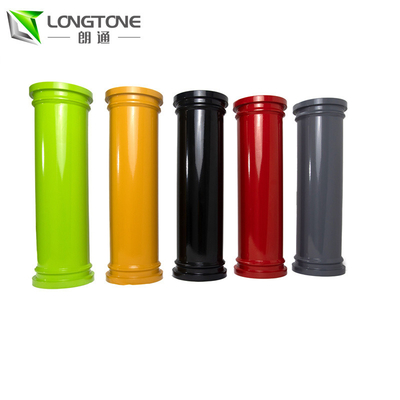

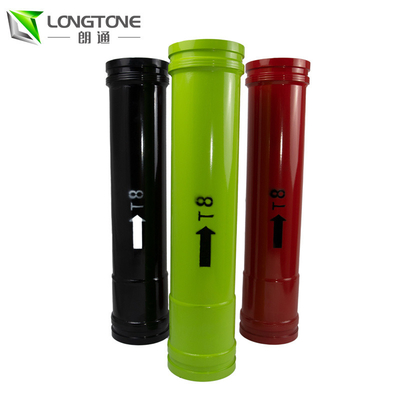

High Quality Chinese Factory 133*5.5*3000 Concrete Pump Pipe Elbow For Sale
Product details
| Nmae | Concrete pipe |
| Spec | 133*4.5/133*5.5 |
| Hrd | 64-66 |
| Tinckness | 1.7+1.8/2.3_3.2 |
| Reference | 50000-80000Cube |
| Applicable brand | Zoomlion Sany Schwing PM |
| Flage | 148mm |
The tops series pipes produced by our company adopt double-layer integrated design,
which has the advantages of long service life, high cost performance, good wear resistance,
stable quality and so on
Technical specifications
ID: DN 100 － DN 125
Thickness:(INNER+OUTER)mm
3.2+2.3；3.2+2；3.5+2；4+2；3+2
Length:100-6000mm
Hardness:HRC 62-65
Working pressure: 12MPa
LT TOPS pipes technical characteristics are:
1. The material of the inner tube is uniform and customized by the first-class domestic steel factory, which is better than the average 65Mn.
2. Implement the technical standards of Putzmeister, Sany, Zoomlion, XCMG, Foton and other pump truck manufacturers.
3, the inner tube hardness is uniform HRC65,and adopts intermediate frequency heat treatment, with low stress and small deformation.
4. Use thicker and longer wear-resistant sleeves.
5. The service life of the complete set is 60,000 cubic meters.
